Rotary Kiln, rotary calciner, rotary furnace, rotary Lime Kiln
Handan metallurgical engineering & Research Co. Ltd (MER) currently is the TOP professional company majoring in design, equipment fabrication, installation, production, training, and commissioning in China. So far, the company has undertaken around 100sets of rotary kiln of Active Lime (dolomite calcinations).

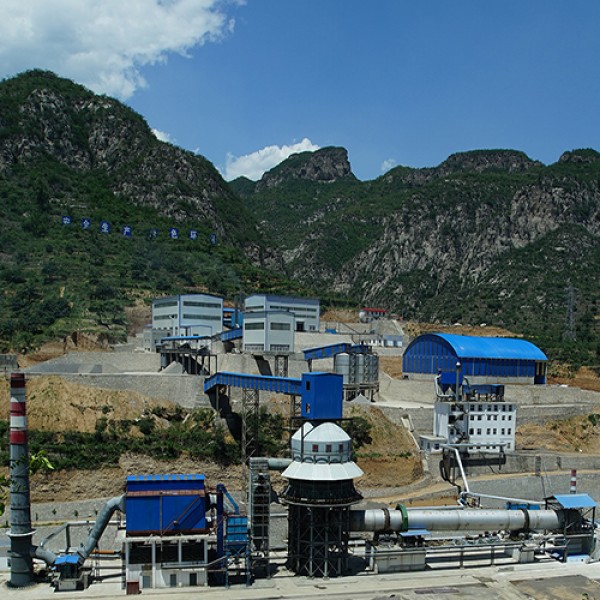

MER energy saving revolving kiln of Active Lime (dolomite calcinations) production line is the most uniform calcinations technology and equipment for Active Lime (dolomite calcinations), adopting advanced vertical preheater, rotary kiln and vertical cooler technology. It can reduce energy consumption, raise production capacity, reduce costs, and achieve good results in emission reduction and energy saving. The raw material particle size is 15~45mm (10~20mm with less productivity), the product activity is 420ml or more. The fuel can be gas and solid, or mixing. The products specifications include 100t/d,150t/d, 200t/d, 300t/d, 400t/d, 500t/d, 600t/d, 700t/d, 800t/d, 900t/d, 1000t/d,1200t/d, 1400t/d, 1600t/d
MER vertical pre-heater has high heat exchange efficiency. After the pre-decomposition, the material will be returned to rotary kiln to be further calcination. The system makes full use of the residual heat of flue gas. The Adjustable technology of conveying pipe is firstly originated in China. It enlarges the particle size range of material.
The refractory lining of MER rotary kiln adopts new-type multiple energy saving brick which is an exclusive technology and developed independently. Contrast with the traditional refractory material, the multiple energy saving brick can reduce the temperature of kiln surface, and prolong service life of rotary kiln. Adopting advanced average cooling air technology, MER vertical cooler achieves high efficiency in heat-exchanger and uniform cooling. After being heat transferred, the secondary air is directly forced into the rotary kiln to be reused.
We are the manufacturer of lime kiln, we can provide high quality rotary kiln such as limestone rotary kiln.
Reactivity:380~450 cc adjustable; LOI: 0~1.5%; Productivity Flexibility: ~120 or 140%
Heat consumption/ton (including electrical/ fuel consumption) for 1000~1600tpd is the same or lower as PFR while more advantages than twin-shaft Pfr Kiln; for 1200~1600tpd, is around 800~880kcal/kg lime of LOI ＜1%
For maximizing the mine value, we reference set up both Rotary kiln and Pfr Kiln, for both small size and big size limestone; high quality and normal quality lime, flexibile output.
Just for normal lime production, we reference single shaft VSK for small capacity100-300tpd, PFR or PRK for 400~800tpd, while 800~1600tpd by using rotary kiln.
Three Key Equipments for rotary kiln
Burner
MERSQ series burner is designed on the basis of different kiln type, coal powder character and technical conditions. Its special structure and reasonable technical parameter could ensure full mixing among fuel, primary air and secondary air. It has advantages of high burning efficiency, strong heating intensity and good flame shape. It is easy to adjust and has been widely used.
MERSQ burner, with advanced technology, is precisely machined. The material is special, and could resist high temperature and abrasion. It has a long service life. Above all, MERSQ has a high reputation among users.
• Flame shape is regular, complete, and stable. Sweeping of furnace lining will not appear. Ringing will be avoided, so it can prolong the service life of furnace lining.
• Good mixing of fuel, primary air and secondary air could lead to full burning. It could raise the heating intensity of furnace, and reach the purpose of increasing production and reducing energy consumption.
• Reasonable flame shape can bring uniform burning temperature distribution. So it could protect furnace mouth and cylinder.
• Reducing the content of CO and NOx, ensuring the safety operation of dust removal behind the kiln and environment protection.
• Controlling valve is equipped in each ventilation circuit, and it’s flexible in adjusting the air volume and proportion of it in respective circuit, thus to adjust the shape of flame and combustion intensity
• We are the Rotary Lime Kiln suppliers in China.
|
77 |
Tangshan xxx Steel Co., Ltd. Revamping |
600TPD |
2013 |
|
78 |
Shandong Juneng xxx Co., Ltd Phase2 |
600TPD |
2014 |
|
79 |
Shandong xxx Building Material Co., Ltd |
2X800TPD |
2014 |
|
80 |
Handan xxx Technology Co., Ltd Phase 1 |
800TPD |
2014 |
|
81 |
Yibin xxx New Building Material Co., Ltd. Rev. |
300TPD |
2014 |
|
82 |
Cangzhou xxx company. Revamping |
800TPD |
2014 |
|
83 |
Egypt Lime Engineering |
200TPD |
2014 |
|
84 |
Shanxi xxx Industry and Trade Co., Ltd. Rev. |
800TPD |
2014 |
|
85 |
Shanxi xxx Mg In. Co., Ltd. Rev. |
2X300TPD |
2014 |
|
86 |
Shanxi xxx Building Material Co., Ltd |
2X1000TPD |
2015 |
|
87 |
Gansu xxx xx Energy Co., Ltd |
800TPD |
2015 |
|
88 |
Shanxi xx Investment Co., Lt Phase1 |
600TPD |
2015 |
|
89 |
Heilongjiang xx Lime Co., Ltd |
400TPD |
2015 |
|
90 |
China xxx Shenma Group |
400TPD |
2016 |
|
91 |
Handan xx Technology Co., Ltd Phase 2 |
800TPD |
2016 |
|
92 |
Shanxi xxx Calcium Industrial Co., Ltd |
2X600TPD |
2016 |
|
93 |
Shanxi xxxx Hedong Coking Company |
600TPD |
2016 |
|
94 |
Shanxi xxx Magnesium Industrial Co., Ltd (dolomite) |
800TPD |
2016 |
|
95 |
Shandong xxx Group Iron and Steel Company |
800TPD |
2016 |
|
96 |
Pinshan xxx Iron and Steel Co., Ltd |
2X1000TPD |
2017 |
|
97 |
Hebei xxx group Fengnan |
2*800TPD |
2017 |
|
98 |
Shanxi xxx Dingxin New Material Co., Ltd |
2X1000TPD |
2018 |
|
99 |
Xiangfeng xxx Building Material Co., Ltd |
800TPD |
2018 |
|
100 |
Nanyang xxx Special Steel Co.,Ltd |
600TPD |
2018 |
|
101 |
Belgium xxx group |
2×600TPD |
2018 |
|
102 |
Shanxi xxx Coal Chemical Group |
600TPD |
2018 |
|
103 |
Jiujiang Iron & Steel xxx Mining Co., Ltd |
800TPD |
2018 |
|
104 |
Thailand xxx Industrial Co., Ltd |
300TPD |
2018 |
|
105 |
Jianlong Group xxx hi-tech Co., Ltd |
2x900TPD |
2019 |
|
106 |
Jianlong Group xxx Iron & Steel Co., Ltd |
2x800TPD |
2019 |
|
107 |
Tangshan xxx Furnace Material Co., Ltd |
600TPD |
2019 |
|
108 |
Guizhou xxx Fuquan Chemical Co., Ltd |
200TPD |
2019 |
|
109 |
Jianlong Group xxxx Iron & Steel |
600TPD |
2019 |
|
110 |
Benxi xx Mining Co., Ltd |
600TPD |
2019 |
|
111 |
Sichuan Dujiangyan Iron & Steel xxx |
500TPD |
2020 |
|
112 |
Hubei xxx Ca Industry Co., Ltd |
2x600TPD |
2020 |
|
113 |
Guangxi xxx Alu Industry xx Mining Co., Ltd |
2x800TPD |
2020 |
|
114 |
Hubei xx Ca Industry Co., Ltd |
2x800TPD |
2020 |
|
115 |
Pingmei Group xx CaCl2 company |
800TPD |
2020 |
|
116 |
India mining Pvt. Ltd |
200TPD |
2020 |
|
117 |
Tangshan xx Iron and Steel Co., Ltd |
2x1200tpd |
2021 |
|
118 |
SOZK (Kazakhstan) |
2x600tpd |
2021 |
|
119 |
Jiujiang xx Mining Co., Ltd |
1000tpd |
2021 |
|
120 |
Linwu County xx Mining Co., Ltd |
1000tpd |
2021 |
|
121 |
Henan xx Iron and Steel Group |
800tpd |
2021 |
|
122 |
Middle East Dolo mining Group |
4x600tpd |
2021 |
|
123 |
Sichuan xx Mining Co., ltd |
800tpd |
2021 |
|
124 |
Sichuan xx Mining Co., ltd (overhaul) |
600tpd |
2021 |
|
125 |
Shanxi xx Iron & Steel Co., Ltd |
1200tpd |
2021 |
|
126 |
Guangshui xx Metallurgical Industry Co., Ltd |
800tpd |
2022 |
|
127 |
Hami xx Ca. Industry Co., Ltd |
600tpd |
2022 |
|
128 |
Hubei xx Ca. Industry Co., Ltd |
2x400tpd |
2022 |
|
129 |
Yumen xx Ca. Industry Co., Ltd (Phase1) |
800tpd |
2022 |
|
130 |
Shanxi xx Hi-Ca. Co., Ltd |
800tpd |
2022 |
|
131 |
Shanxi xx Iron and Steel Co., Ltd |
600tpd |
2022 |
|
132 |
Nanjin xx Mg Co., Ltd (hard burnt dolime) |
1350/1600t |
2022 |
|
133 |
Hebei xx Iron and Steel Group |
2x1000t |
2023 |
|
134 |
Wutai xx Mg Co., Ltd (hard burnt dolime) |
2x 1350/1600t |
2022 |
